Shadow Mask Template

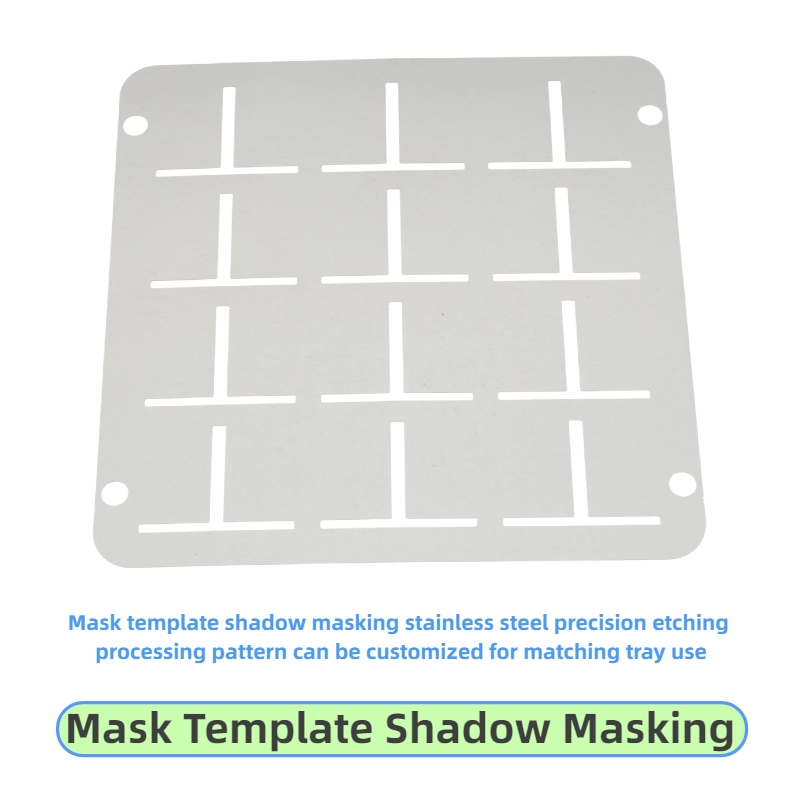

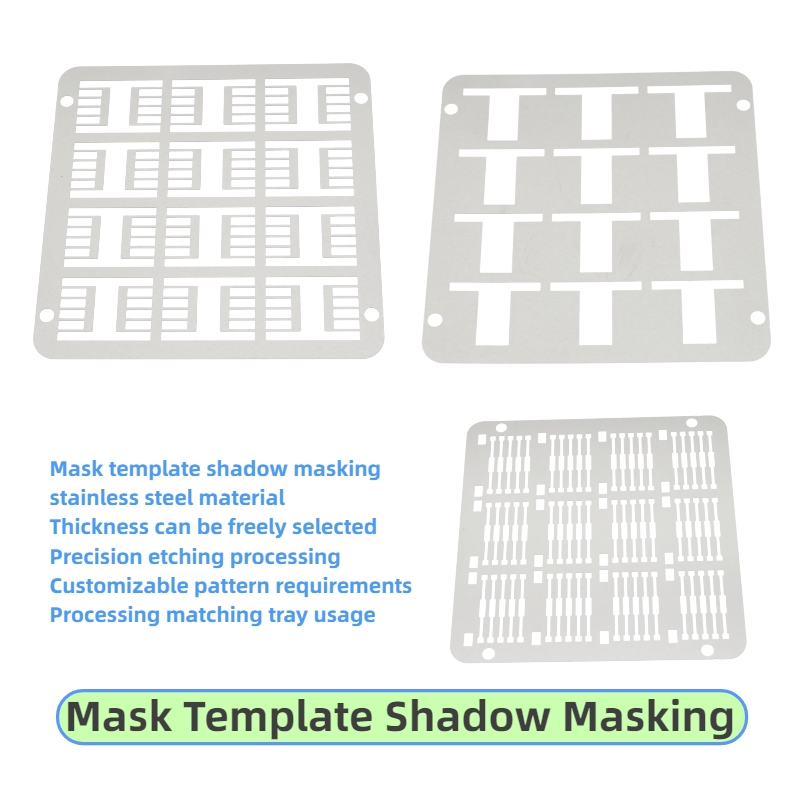

| Product introduction： | Mask template shadow masking stainless steel material Thickness can be freely selected Precision etching processing Customizable pattern requirements Processing matching tray usage |
- Hotline：135 3425 7051
Detailed Description
Shadow masks are mainly divided into two types: hole shaped shadow masks and stripe grid shaped shadow masks. The
perforated shadow mask display shows finer and more accurate images; The color of the striped shadow mask display should
be brighter. The perforated shadow mask is made of ultra-thin steel plate covered with regular small holes, and its key
parameter is the dot pitch, which is the distance between the centers of two adjacent fluorescent dots of the same color.

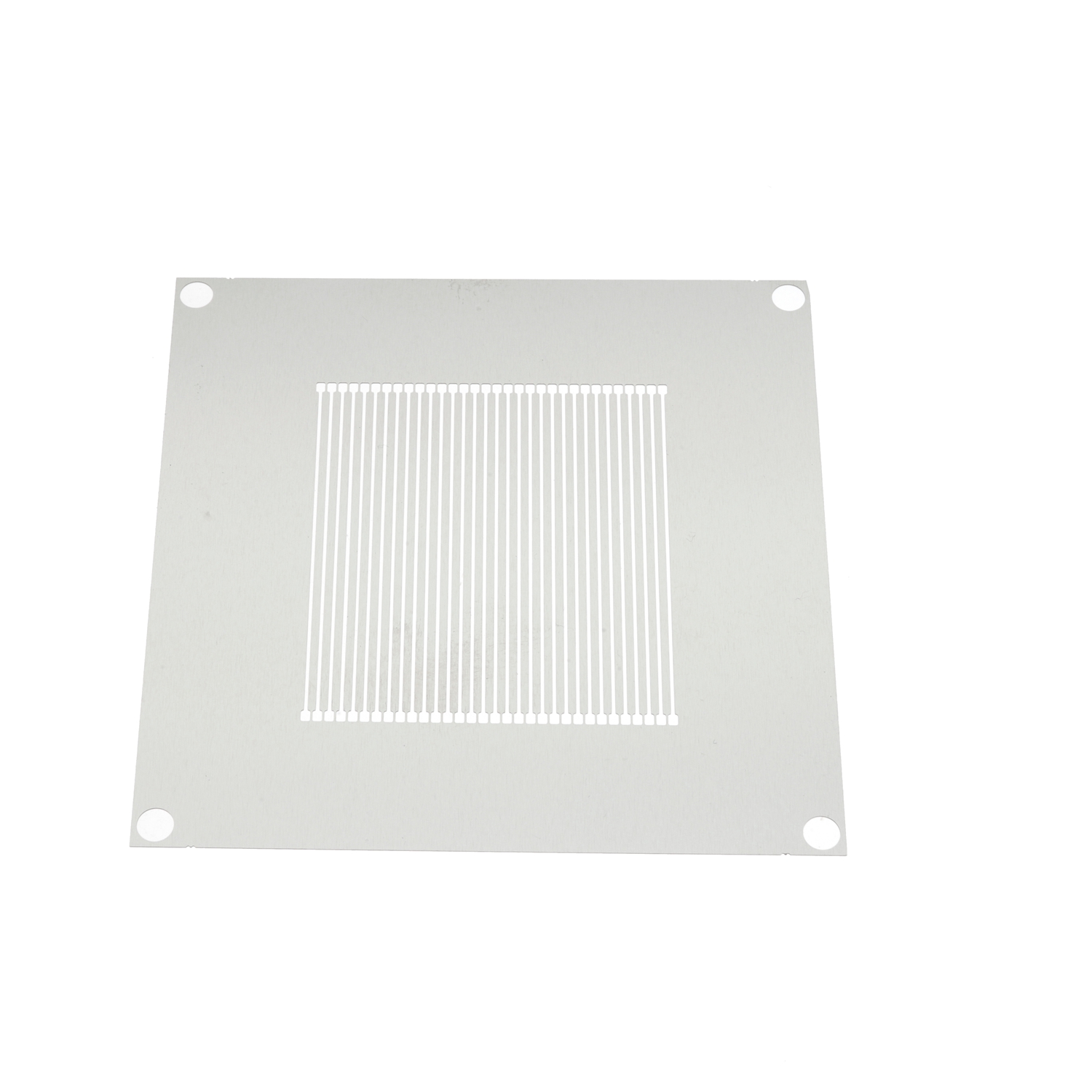

A grid like shadow mask (also known as a shadow grid) uses vertically arranged thin metal lines (grid bars) instead of holes,
and its key parameter is the Grille Pitch, which refers to the distance between the centerline of adjacent gratings of the same
color in the horizontal direction. The manufacturing of shadow masks mainly adopts the process of chemical etching on
metal substrates.
|
Product Name |
Shadow Mask Template |
|
Purpose |
Shadow masks are mainly divided into two types: hole shaped shadow masks and stripe grid shaped shadow masks. The perforated shadow mask display shows finer and more accurate images; The color of the striped shadow mask display should be brighter. The perforated shadow mask is made of ultra-thin steel plate covered with regular small holes, and its key parameter is the dot pitch, which is the distance between the centers of two adjacent fluorescent dots of the same color. A grid like shadow mask (also known as a shadow grid) uses vertically arranged thin metal lines (grid bars) instead of holes, and its key parameter is the Grille Pitch, which refers to the distance between the centerline of adjacent gratings of the same color in the horizontal direction. The manufacturing of shadow masks mainly adopts the process of chemical etching on metal substrates. |
|
Material |

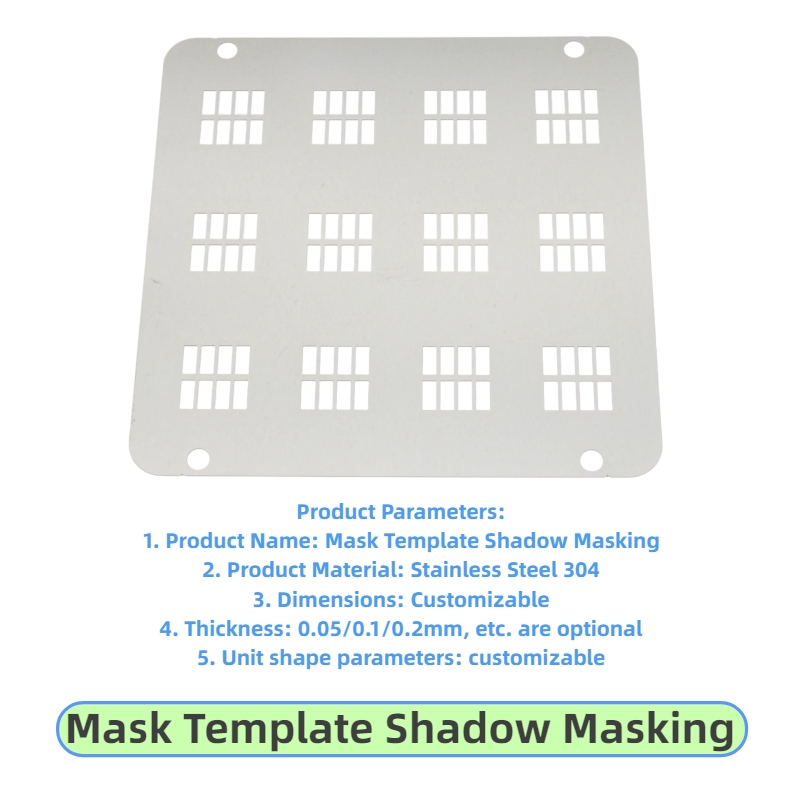

Stainless steel, SGS environmental protection testing |
|
Product thickness |
According to customer requirements, the conventional thickness is 0.05mm or 0.1mm. |
|
Main body process flow |
Etching processing/laser cutting |
|
Sample production |
Stock samples are available, and designs can also be updated. Quick sample production: 7-10 days. |
|
Bulk processing time |
12-20 days, depending on the quantity of different batches. |
|
Can the design be customized |
Personalized designs are provided free of charge. Quotations will be calculated separately based on the processing quantity. |
|
Guarantee of processing quality |
1.Originated from a Chinese factory, specializing in hardware processing for more than 15+ years. |
|
Business and after-sales service |
Full-time professionals provide end-to-end service, ensuring worry-free after-sales support. |
|
Import and export rights |
Possess self-operated import and export rights, with no need for intermediaries. |
.jpg)
.jpg)
.jpg)
.jpg)
.JPG)
1. How are sample fees charged? Most of our products can be sampled for free. Samples or similar products can be
provided. Custom-made products or higher-cost samples will be charged accordingly. Bulk orders are charged at unit
prices. 2. How do I confirm my order? Once we confirm your order and receive payment, we will send a confirmation
email or order confirmation letter. After confirmation, we will start production and arrange shipment. You can always
contact us via email at LJC@SZ-YDF.COM to inquire about the production and logistics status. 3. Do you provide
contracts or agreements? Yes, after confirming the order, we will sign a formal contract based on mutually agreed
terms, which will include product specifications, prices, delivery times, payment methods, etc. After the contract is
signed, we will proceed according to the terms. 4. Can I cancel my order if I am not satisfied? Since this is a custom
product, we can send samples for you to confirm. If you find that the sample does not meet your requirements and we
cannot provide a satisfactory sample, you may cancel the order. However, after the sample confirmation and payment,
once production has started, cancellation is not supported. 5. Do you support custom processing? We can customize
processing based on the customer’s specified materials, technical requirements, and drawings. 6. What is your pricing?
Our prices vary based on the product type, order quantity, customization requirements, and payment methods. Please
provide the product model and quantity, and we will give you a detailed quote. As a factory-direct seller, we eliminate
middlemen, saving you costs and offering competitive prices. 7. Can your prices be negotiated? Our prices are based
on market conditions and product costs, but we can offer discounts for large orders or long-term customers. Please
contact us, and we will provide discount options based on your order volume and cooperation duration. 8. What are
your payment methods?
